Norden Cable Trailer

Norden Cable Trailer

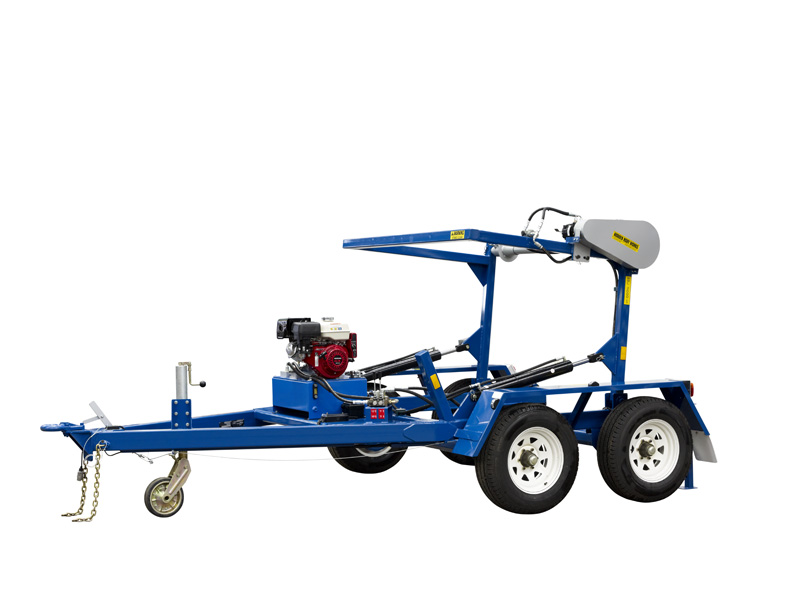

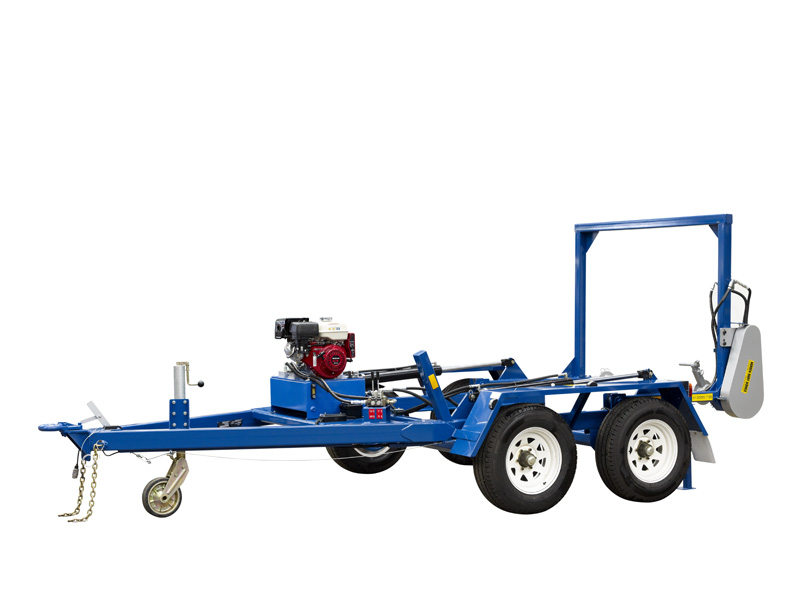

cable trailer

Twin axle trailer to suit cable reels up to 2000kg 2.4 diameter

Axles Dual Al-Ko rubber suspension, 2500kg capacity each, (-20%, not load sharing axles).

  • Wheels Landcruiser 16” x 7”, 6 stud ,Tyres GT 225x75 R16, Recommended cold inflation pressure 45-75 psi (75 psi max.)
  • Brakes 12” electric 12Volt,  Handbrake override to front axle, engager break-away kit
  • Coupling 3500kg fixed ring, 75mm ID (suitable for pintle hook type tow-bars)
  • 7-pin electrical plug
  • 2 off 10mm transport chain
  • ATM Aggregate trailer mass 3500 kg Max
  • Tare weight Estimated tare mass without spare wheel 1100kg Approx
  • Payload Total Estimated Payload based on a tare mass of 1100kg is
  • 2400 kg. However the designed SWL for the cable drum is 2000kg. (See SWL)
  • SWL The designed SWL. For the lifting of the Cable Reels is 2000 kg.
