Two Cargo Slides available

Optimisation of storage space is paramount for efficient and convenient access. With the Kwikee range of slides and trays doing the hard work, it allows you to work smarter and safer. From easy access utility trays to large capacity cargo slides there is a Kwikee slide to suit your needs. Kwikee makes 2 styles of cargo slides, each in a variety of sizes so finding the right fit is as easy as using them.

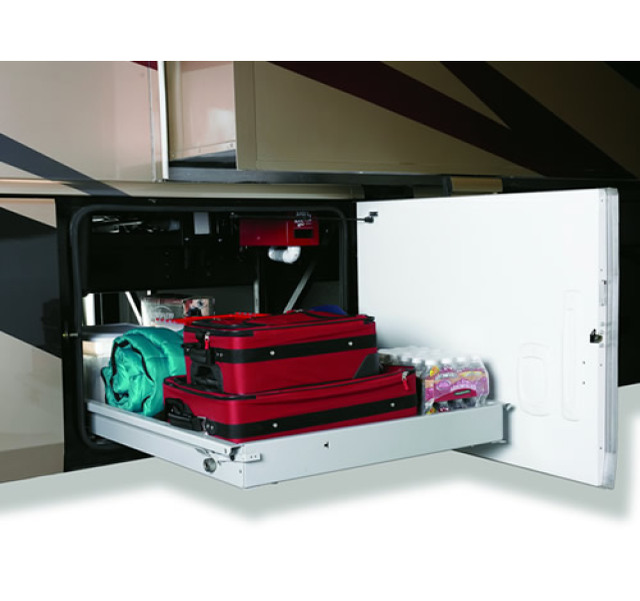

Kwikee Storage Trays

Heavy Duty Slide Assembly
A variety of depths or sides. Create the exact width you need by bolting in plywood platform. Cover with carpet, rubber matting, or vinyl and you are set. Industrial grade ball bearing slide gives smooth action and support with 100% pull-out length. Slide shown as installed. Heavy Duty slide assemblies ship with side slide assemblies - you create the slide floor from plywood and covering (not included).
  • Industrial grade ball bearing slide
  • 200-600 lb. weight capacity
  • Safety latch holds platform secure during travel and when fully extended
Model #
Length
Capacity
Latches
905901000
12” / 304mm
200lb / 90kg
Right side
905902000
16” / 406mm
200lb / 90kg
Right side
905916000
22” / 558mm
200lb / 90kg
Right side
905966000
22” / 558mm
400lb / 180kg
Right side
905918000
30” / 762mm
200lb / 90kg
Right side
905968000
30” / 762mm
400lb / 180kg
Right side
905988000
30” / 762mm
600lb / 270kg
Both Sides
Super Slide Assembly
Roller bearing slide designed for smooth handling of really big loads. Depths for compartments 36" to 90". Customize compartment width by bolting in plywood platform and covering with carpet, rubber matting, or vinyl. Super Slide shown as installed. Super Slide assemblies ship with side slide assemblies and end pieces - you create slide floor from plywood and covering (not included)
  • Heavy duty roller bearings
  • 1000 lb. weight capacity
  • Spring-loaded latch locks slide in 3 positions: Retracted, 1/3 extended, and 2/3 extended

*Heavy duty slide assemblies, include side slides and end pieces, they do not include plywood floor or covering*

Model #
Length
Capacity
Lock
905853000
36” / 914mm
1,000lb / 453kg
3 position
905850002
42” / 1066mm
1,000lb / 453kg
3 position
905851002
48” / 1219mm
1,000lb / 453kg
3 position
905852002
54” / 1371mm
1,000lb / 453kg
3 position
905855002
60” / 1524mm
1,000lb / 453kg
3 position
905856002
70” / 1778mm
1,000lb / 453kg
3 position
905858002
80” / 2032mm
1,000lb / 453kg
2-way slide
905857002 90” / 2286mm 1,000lb / 453kg 2-way slide
